Windows ProjFS Internals: A Technical Deep Dive
Originally published at Windows ProjFS Internals: A Technical Deep Dive | Huntress.
The Windows operating system supports many different file systems, the most common being NTFS. In Windows 1809, Microsoft introduced a new file system called the Projected File System (ProjFS).
I had heard about this file system a couple of years ago and meant to look into it earlier last year, but never did. After a conversation with Casey Smith, Staff Threat Intelligence Analyst at Huntress, around the Projected File System, I decided to do a bit of a deep dive into the topic.
Projected File System Internals
The ProjFS does exactly what it sounds like. It “projects” files and folders from a backing datastore into the file system, making them appear as if they exist on disk. When you list a directory, ProjFS shows virtual files/folders. When you actually open or read a file, ProjFS “hydrates” it by fetching the real data on-demand from the backing store. To implement this, there are three requirements:
- Enabling the ProjFS feature. This isn’t enabled by default, but can be enabled without a reboot via: Enable-WindowsOptionalFeature -Online -FeatureName Client-ProjFS -NoRestart
- The ProjFS driver must be installed/running. This is downloaded by TiWorker.exe (Windows updater) once you enable the ProjFS feature.
- A provider — a usermode application that specifies the virtualization root, the files/folders to be projected, and the data to project.
Luckily, Microsoft has documented the ProjFS APIs, and they’re incredibly easy to follow. I won’t go over the APIs, since they have pretty good documentation. Plus, Pavel Yosifovich’s blog “Projected File System” walks through this as well.
However, here’s an example launching a provider and projecting files and a folder.
ProjFS.exe C:\ProjFSDir
[*] Directory created.
[*] Virtualization Root: C:\ProjFSDir
[*] Projected File 1: C:\ProjFSDir\ProjectedFile.txt
[*] Projected File 2: C:\ProjFSDir\TestDir\SecondProjectedFile.txt
[*] Press Ctrl+C to stop...As you can see, ProjFS.exe is the ProjFS provider, C:\ProjFSDir is the virtualization root, and the monitored files are C:\ProjFSDir\ProjectedFile.txt and C:\ProjFSDir\TestDir\SecondProjectedFile.txt.

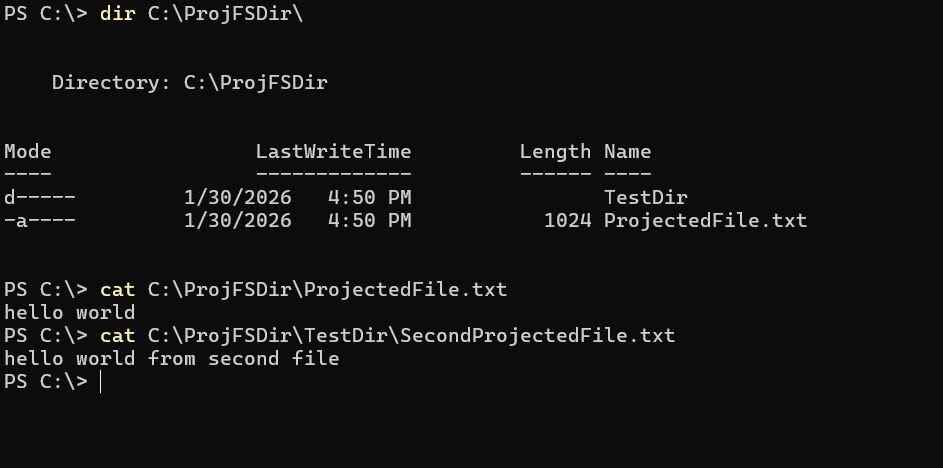

When an application then attempts to access one of the projected files, the provider is notified and it chooses what data to project. This could mean that for ProjectedFile.txt I could choose to project “hello world” and for SecondProjectedFile I could project “hello world from second file.”
The ProjFS supports notifications when a file operation happens within the virtualized root. For example, if I create a new file called NewFile.txt within C:\ProjFSDir\, I will see the NEW_FILE_CREATED notification:
[*] NEW_FILE_CREATED. File: NewFile.txt, TriggeringImageInfo: \Device\HarddiskVolume3\Windows\System32\WindowsPowerShell\v1.0\powershell.exe (PID: 23888)
[*] FILE_OPENED. File: NewFile.txt, TriggeringImageInfo: \Device\HarddiskVolume3\Windows\System32\WindowsPowerShell\v1.0\powershell.exe (PID: 23888)The notifications supported are actually pretty helpful. The full list of supported notifications is:
typedef enum PRJ_NOTIFICATION
{
PRJ_NOTIFICATION_FILE_OPENED = 0x00000002,
PRJ_NOTIFICATION_NEW_FILE_CREATED = 0x00000004,
PRJ_NOTIFICATION_FILE_OVERWRITTEN = 0x00000008,
PRJ_NOTIFICATION_PRE_DELETE = 0x00000010,
PRJ_NOTIFICATION_PRE_RENAME = 0x00000020,
PRJ_NOTIFICATION_PRE_SET_HARDLINK = 0x00000040,
PRJ_NOTIFICATION_FILE_RENAMED = 0x00000080,
PRJ_NOTIFICATION_HARDLINK_CREATED = 0x00000100,
PRJ_NOTIFICATION_FILE_HANDLE_CLOSED_NO_MODIFICATION = 0x00000200,
PRJ_NOTIFICATION_FILE_HANDLE_CLOSED_FILE_MODIFIED = 0x00000400,
PRJ_NOTIFICATION_FILE_HANDLE_CLOSED_FILE_DELETED = 0x00000800,
PRJ_NOTIFICATION_FILE_PRE_CONVERT_TO_FULL = 0x00001000,
} PRJ_NOTIFICATION;You might notice that three of these notifications, namely PRJ_NOTIFICATION_PRE_DELETE, PRJ_NOTIFICATION_PRE_RENAME, and PRJ_NOTIFICATION_PRE_SET_HARDLINK have “PRE” within their name. This correlates to a “pre” operation notification callback, which means that those notification callbacks allow you to return an error if someone tries to perform one of those operations. For example, if I try to delete C:\ProjFSDir\TestDir\SecondProjectedFile.txt, I can deny that access:
You can also technically get notifications for when FileRead operations happen as well, because whenever someone wants to read from a file, the provider has to support the GetFileDataCallback callback, which, within the callback, the provider can either call PrjWriteFileData or not project any data and return an error (access is denied?)….but more on that later. Regardless, when the GetFileDataCallback callback is hit, the provider can print that data was read from a file.
[*] FILE_OPENED. File: ProjectedFile.txt, TriggeringImageInfo: \Device\HarddiskVolume3\Windows\System32\WindowsPowerShell\v1.0\powershell.exe (PID: 23888)
[*] FILE_READ. File: ProjectedFile.txt, TriggeringImageInfo: \Device\HarddiskVolume3\Windows\System32\WindowsPowerShell\v1.0\powershell.exe (PID: 23888)These notifications are extremely helpful in logging when someone attempts to perform file operations on your file. A good use case for this would be canary files-instead of leveraging an alternative, like a minifilter. But before I start diving into the benefits of this technology, I want to go over the internals of the ProjFS, how it works, and what it really is. This way, when I describe the benefits (both offensive or defensive), it makes more sense.
ProjFS architecture
Architecturally, the ProjFS isn’t a filesystem. It’s a minifilter that relies on reparse points to identify its own files/directories that were generated by the provider. For those that are not aware, reparse points are an attribute that is some predefined data that’s understood by a usermode application and typically a filesystem, but in this case a minifilter. Reparse points contain a tag, an optional GUID, and the defined data. The ProjFS has two defined reparse point tags:
- IO_REPARSE_TAG_PROJFS — main reparse point. Used on files/directories that are created
- IO_REPARSE_TAG_PROJFS_TOMBSTONE — marks files/directories that have been deleted locally to prevent re-projection

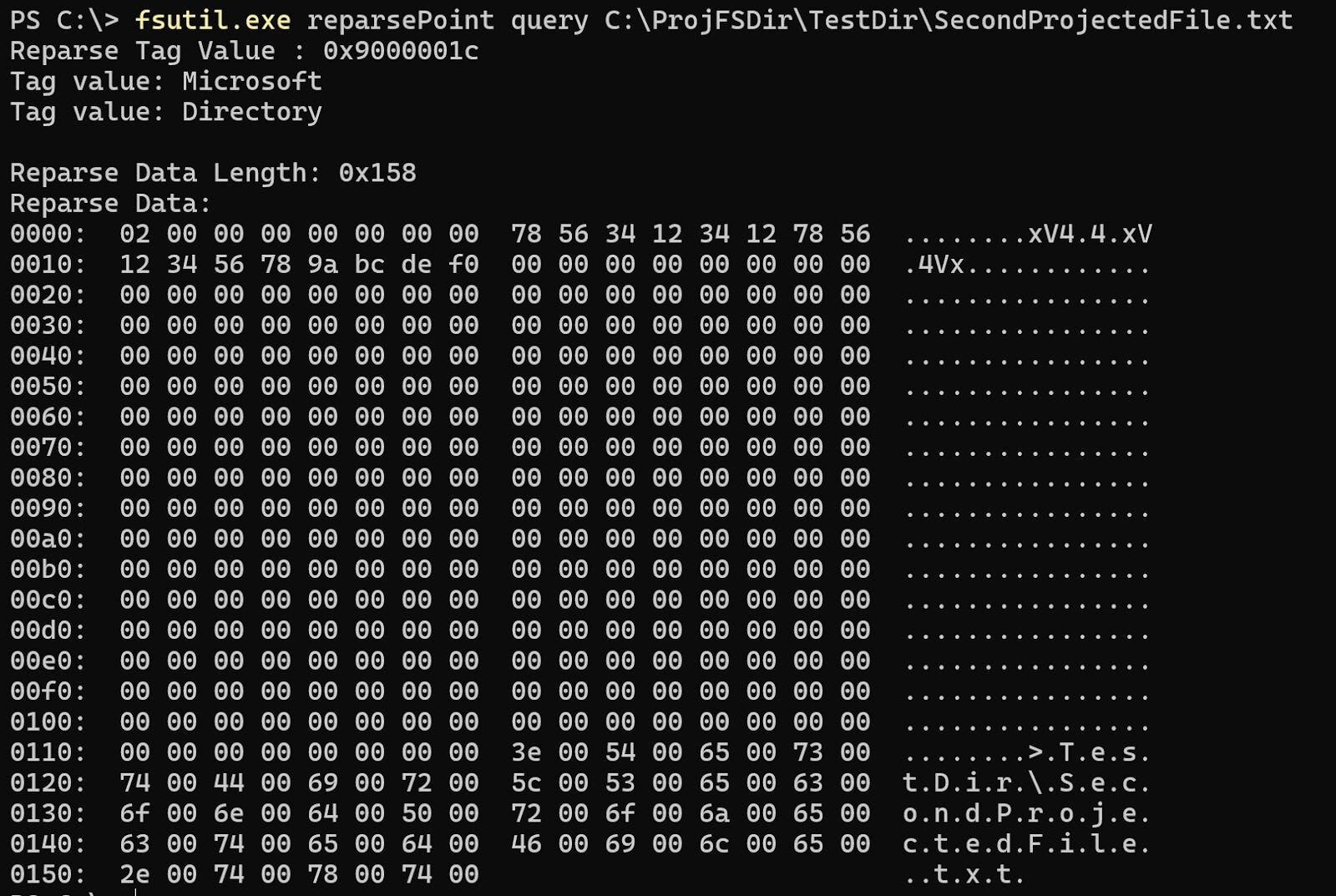

Programmatically, one can query a reparse point by passing in FSCTL_GET_REPARSE_POINT into DeviceIoControl, but Windows has an application called fsutil.exe that makes this a bit easier:
Reparse points were designed for file systems, like NTFS. NTFS symbolic links leverage reparse points, so that NTFS handles the request properly. Just because reparse points were designed for filesystems, it doesn’t mean that others in the File I/O stack can’t leverage them either, like a minifilter.
We know that the ProjFS is a minifilter in a couple of ways:
- ProjFS has an altitude number when installed
After the prjflt.sys (ProjFS driver) was installed, I noticed that the driver had a filter altitude of 189800. This can be seen by either running fltmc.exe in a command prompt or by running the WinDbg command !fltkd.filters:
kd> !fltkd.filters
Filter List: ffffcc8ed638a790 "Frame 0"
<snipped>
FLT_FILTER: ffffcc8edb552a30 "PrjFlt" "189800"
FLT_INSTANCE: ffffcc8edba16820 "PrjFlt Instance" "189800"
<snipped>This seemed odd to me because, without getting too far into filesystem/minifilter internals, filter altitudes are tied to minifilters so that when they load, they sit in a certain spot in the device stack, ensuring they get a call at a certain point within the File I/O operation. Filesystems don’t actually use filter altitude numbers. Microsoft documents some filter altitudes that they’ve assigned within their Allocated Filter Altitudes documentation, and they actually document that the prjflt.sys driver has the altitude number of 189800.
2. ProjFS supports Pre/Post callbacks for a number of File I/O operations
After opening up the prjflt.sys driver, it confirmed my suspicions once I saw that it supported pre/post file operation callbacks within WinDbg:
kd> !fltkd.filter ffffcc8edb552a30
FLT_FILTER: ffffcc8edb552a30 "PrjFlt" "189800"
FLT_OBJECT: ffffcc8edb552a30 [02000000] Filter
RundownRef : 0x0000000000000014 (10)
PointerCount : 0x00000002
PrimaryLink : [ffffcc8edb550530-ffffcc8edb9b8330]
Frame : ffffcc8ed638a6e0 "Frame 0"
Flags : [00000096] FilteringInitiated NameProvider BackedByPagefile FiltersReadWrite
DriverObject : ffffcc8ed9687d00
FilterLink : [ffffcc8edb550530-ffffcc8edb9b8330]
PreVolumeMount : 0000000000000000 (null)
PostVolumeMount : 0000000000000000 (null)
FilterUnload : fffff8016d0c80f0 prjflt!PrjfUnload
InstanceSetup : fffff8016d0c6600 prjflt!PrjfInstanceSetup
InstanceQueryTeardown : fffff8016d0c6480 prjflt!PrjfInstanceQueryTeardown
InstanceTeardownStart : fffff8016d0c6e50 prjflt!PrjfInstanceTeardownComplete
InstanceTeardownComplete : fffff8016d0c6e50 prjflt!PrjfInstanceTeardownComplete
ActiveOpens : (ffffcc8edb552bf0) mCount=0
Communication Port List : (ffffcc8edb552c40) mCount=1
Client Port List : (ffffcc8edb552c90) mCount=2
VerifierExtension : 0000000000000000
Operations : ffffcc8edb552cf0
OldDriverUnload : 0000000000000000 (null)
SupportedContexts : (ffffcc8edb552b68)
VolumeContexts : (ffffcc8edb552b68)
InstanceContexts : (ffffcc8edb552b70)
ALLOCATE_CONTEXT_NODE: ffffcc8edb4dc3b0 "PrjFlt" [02] AllocateDirectly
FileContexts : (ffffcc8edb552b78)
ALLOCATE_CONTEXT_NODE: ffffcc8edb4dc3e0 "PrjFlt" [01] LookasideList (size=368)
StreamContexts : (ffffcc8edb552b80)
ALLOCATE_CONTEXT_NODE: ffffcc8edb4dc560 "PrjFlt" [01] LookasideList (size=48)
StreamHandleContexts : (ffffcc8edb552b88)
ALLOCATE_CONTEXT_NODE: ffffcc8edb4dc6e0 "PrjFlt" [01] LookasideList (size=616)
TransactionContext : (ffffcc8edb552b90)
ALLOCATE_CONTEXT_NODE: ffffcc8edb4dc860 "PrjFlt" [01] LookasideList (size=4)
(null) : (ffffcc8edb552b98)
InstanceList : (ffffcc8edb552aa0)
FLT_INSTANCE: ffffcc8edba16820 "PrjFlt Instance" "189800"
kd> dx (FLTMGR!_FLT_OPERATION_REGISTRATION *)0xffffcc8edb552cf0
(FLTMGR!_FLT_OPERATION_REGISTRATION *)0xffffcc8edb552cf0 : 0xffffcc8edb552cf0 [Type: _FLT_OPERATION_REGISTRATION *]
[+0x000] MajorFunction : 0x0 [Type: unsigned char]
[+0x004] Flags : 0x0 [Type: unsigned long]
[+0x008] PreOperation : 0xfffff8016d0aff50 : prjflt!PrjfPreCreate+0x0 [Type: _FLT_PREOP_CALLBACK_STATUS (__cdecl*)(_FLT_CALLBACK_DATA *,_FLT_RELATED_OBJECTS *,void * *)]
[+0x010] PostOperation : 0xfffff8016d0aeec0 : prjflt!PrjfPostCreate+0x0 [Type: _FLT_POSTOP_CALLBACK_STATUS (__cdecl*)(_FLT_CALLBACK_DATA *,_FLT_RELATED_OBJECTS *,void *,unsigned long)]
[+0x018] Reserved1 : 0x0 [Type: void *]After some more digging, it was clear that the prjflt minifilter supported a decent amount of file operations:
kd> dps 0xffffcc8edb552cf0 L10
ffffcc8e`db552cf0 00000000`00000000
ffffcc8e`db552cf8 fffff801`6d0aff50 prjflt!PrjfPreCreate
ffffcc8e`db552d00 fffff801`6d0aeec0 prjflt!PrjfPostCreate
ffffcc8e`db552d08 00000000`00000000
ffffcc8e`db552d10 00000000`00000003
ffffcc8e`db552d18 fffff801`6d095470 prjflt!PrjfPreRead
ffffcc8e`db552d20 00000000`00000000
ffffcc8e`db552d28 00000000`00000000
ffffcc8e`db552d30 00000000`00000004
ffffcc8e`db552d38 fffff801`6d0954c0 prjflt!PrjfPreWrite
ffffcc8e`db552d40 fffff801`6d095340 prjflt!PrjfPostWrite
ffffcc8e`db552d48 00000000`00000000
ffffcc8e`db552d50 00000000`00000005
ffffcc8e`db552d58 fffff801`6d0b75d0 prjflt!PrjfPreQueryInformation
ffffcc8e`db552d60 fffff801`6d0b7190 prjflt!PrjfPostQueryInformation
ffffcc8e`db552d68 00000000`00000000Lastly, this can be proven when setting a breakpoint on one of the callbacks (PrjfPreCreate & PrjfPostCreate, for example) and watching a file I/O request come through for one of the projected files.
Now that we understand that the ProjFS is a minifilter, some might be wondering, “How does the provider and the minifilter communicate?” For those who know minifilters well, this will come by no surprise, but the provider and the minifilter communicate through filter communication ports.
Filter communication ports are a common avenue used when trying to send messages to and from a minifilter. Yarden Shafir has a great blog on filter communication ports called “Investigating Filter Communication Ports” that I highly recommend reading.
Leveraging fltkd again, we can easily enumerate the port list for PrjFlt:
!fltkd.portlist ffffcc8edb552a30
FLT_FILTER: ffffcc8edb552a30
Client Port List : Mutex (ffffcc8edb552c90) List [ffffcc8edfa87e10-ffffcc8edfa88190] mCount=2
FLT_PORT_OBJECT: ffffcc8edfa87e10
FilterLink : [ffffcc8edfa88190-ffffcc8edb552cc8]
ServerPort : ffffcc8edb89b270
Cookie : ffffbb82d7b791f0
Lock : (ffffcc8edfa87e38)
MsgQ : (ffffcc8edfa87e70) NumEntries=12 Enabled
MessageId : 0x0000000000000000
DisconnectEvent : (ffffcc8edfa87f48)
Disconnected : FALSE
FLT_PORT_OBJECT: ffffcc8edfa88190
FilterLink : [ffffcc8edb552cc8-ffffcc8edfa87e10]
ServerPort : ffffcc8edb89b270
Cookie : ffffbb82d7b78950
Lock : (ffffcc8edfa881b8)
MsgQ : (ffffcc8edfa881f0) NumEntries=0 Enabled
MessageId : 0x0000000000000000
DisconnectEvent : (ffffcc8edfa882c8)
Disconnected : FALSELeveraging a trick that Yarden showed in her blog, we can identify that the filter communication port name is: PrjFltPort.
!object ffffcc8edb89b270
Object: ffffcc8edb89b270 Type: (ffffcc8ed58e7db0) FilterConnectionPort
ObjectHeader: ffffcc8edb89b240 (new version)
HandleCount: 1 PointerCount: 4
Directory Object: ffffbb82c72a8d90 Name: PrjFltPortThis is also very evident by looking inside of the prjflt.sys and ProjectedFSLib.dll binaries. You see a bunch of FilterGetMessage / FilterSendMessage (user mode version) and FltSendMessage (kernel mode version). The initiation of these ports is done when the driver is loaded and calls FltCreateCommunicationPort:
status = FltCreateCommunicationPort(
Filter,
&FilterPort,
&ObjectAttributes,
0,
PrjfPortConnect,
PrjfPortDisconnect,
PrjfPortMessage,
0x7FFFFFFF);FltCreateCommunicationPort registers three callbacks:
PrjfPortConnect— for whenever a usermode application sends a connection request to the prjflt minifilterPrjfPortDisconnect— handles the disconnection of the filter portPrjfPortMessage— handles message requests sent from a usermode application
Let’s look at a real example of this. Let’s say in the above example, I deny access in my notification callback for file deletes like so:
switch (notification) {
case PRJ_NOTIFICATION_PRE_DELETE:
{
std::wprintf(L"[*] PRE_DELETE. ACCESS DENIED. File: %s, TriggeringImageInfo: %s (PID: %d)\n",
callbackData->FilePathName,
callbackData->TriggeringProcessImageFileName,
callbackData->TriggeringProcessId);
return HRESULT_FROM_WIN32(ERROR_ACCESS_DENIED);
}
default:
{
break;
}
}
return S_OK;
}When I go to delete the file, the PRJFLT minifilter receives this request via its PreSetInformation (prjflt!PrjfPreSetInformation) callback, which then checks if the call is a file deletion request, afterwards calling prjflt!PrjfPreSetDispositionInformation and then prjflt!PrjfPrepareForDelete.
PrjfPrepareForDelete's job is to package up all the relevant information and ship it to the provider eventually through FLTMGR!FltSendMessage and received via FilterGetMessage within the function PROJECTEDFSLIB!PrjpCommandHandlerWorkerThreadProc. The message is then parsed and passed to the notification callback, where the request is processed (in our case, it returns access denied). The return value is then passed back to the minifilter via PROJECTEDFSLIB!FilterSendMessage, which triggers prjflt!PrjfPortMessage and then prjflt!PrjfCompleteCommandHandler. This signals the completion event, which wakes up FltCancellableWaitForMultipleObjects inside PrjfSendCommandAndWaitForCompletion, returning the access denied NTSTATUS, which is read and returned back up through PrjfPrepareForDelete -> PrjfPreSetDispositionInformation -> PrjfPreSetInformation, which returns it to Filter Manager and the file deletion is denied.

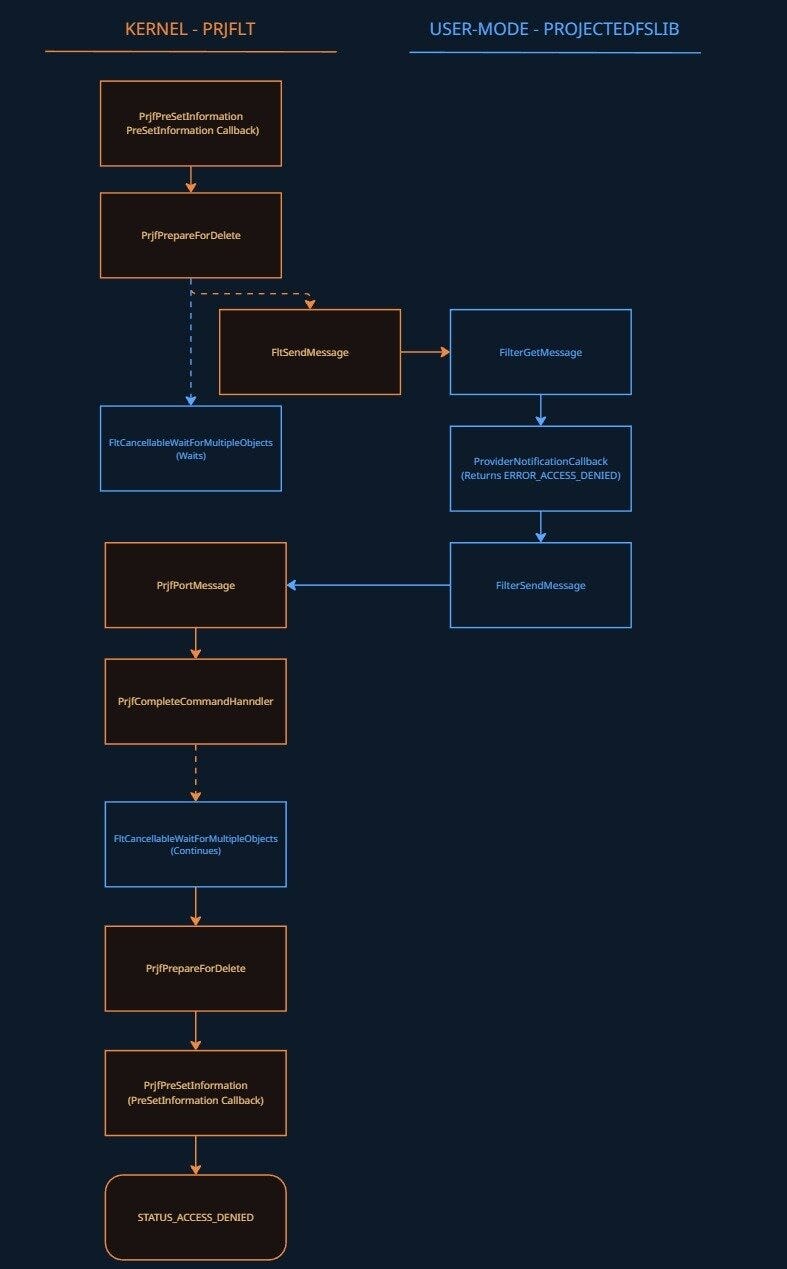

Here’s an image to help visualize this:
Use cases
As I have gone through this, you might have some questions about why this functionality is helpful from either a defensive or offensive perspective. I’ll try to explain some of those in the following sections. There are going to be more use cases than I mention, and I encourage people to dive into the ProjFS to identify them!
Offensive
There are three interesting use cases I want to point out here, but I’ll be a little ambiguous on purpose:
There are no user privilege restrictions on starting a provider

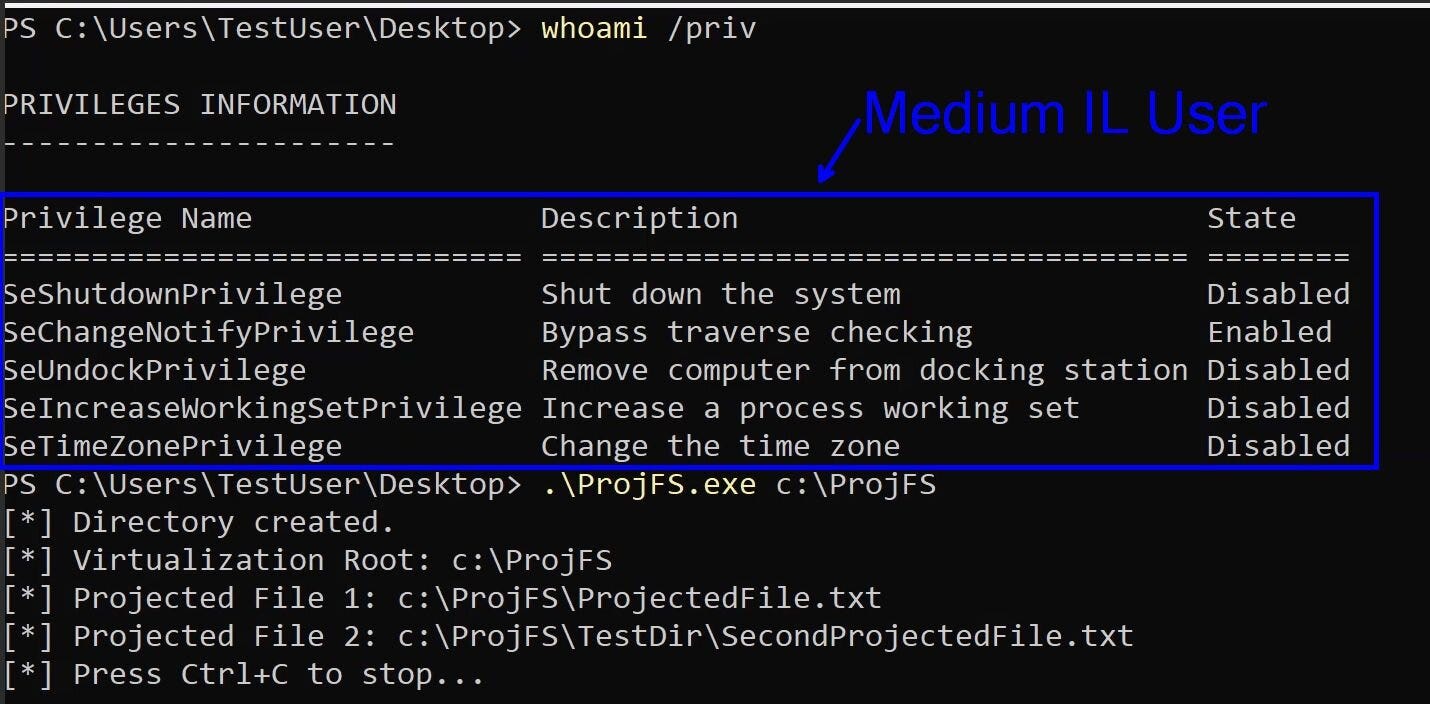

One thing I noticed in my testing is that when a provider is stood up through the PrjStartVirtualizing function, there weren’t any checks on the user’s privilege that would state that only high-integrity (Administrator) users can start a provider and showcase virtualized files. Here’s an example of a medium IL user launching a provider.
Obviously, there is a caveat here that the ProjFS is enabled on the machine, which you need to be an administrator to perform.
Ability to prevent deletes

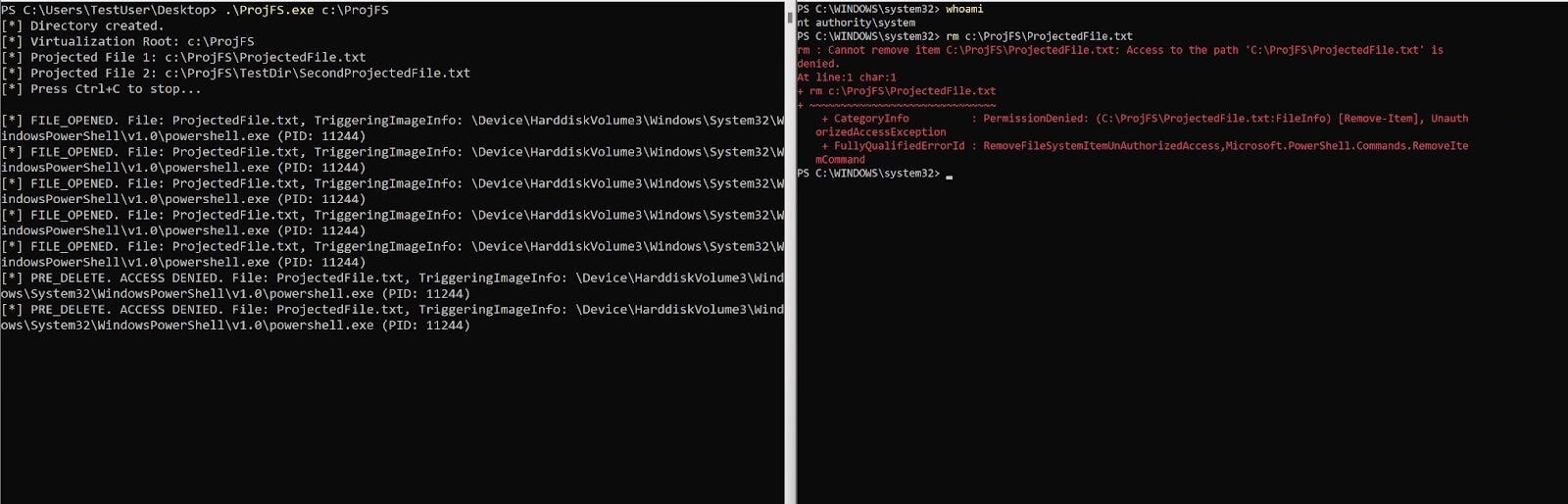

As I showed above, through the NotificationCallback there are three “pre” operations that allow for the UM provider to return a status-like ERROR_ACCESS_DENIED-PRJ_NOTIFICATION_PRE_DELETE, PRJ_NOTIFICATION_PRE_RENAME, and PRJ_NOTIFICATION_PRE_SET_HARDLINK. The one that really caught my eye was PRJ_NOTIFICATION_PRE_DELETE and made me ask the question, “As a medium IL user, can I prevent a higher context application from deleting my files?” The answer was “yes.”
This obviously has some…benefits if one wants to dive into that more.
Ability to prevent reads or change what is read from a certain process
Although there isn’t a pre-operation where someone can return ERROR_ACCESS_DENIED for the read operation, there’s still a way to provide this error or even change what one process reads versus another process. This is possible because every provider has to support a GetFileDataCallbackfunction. This function is used when someone tries to read the contents of that file.

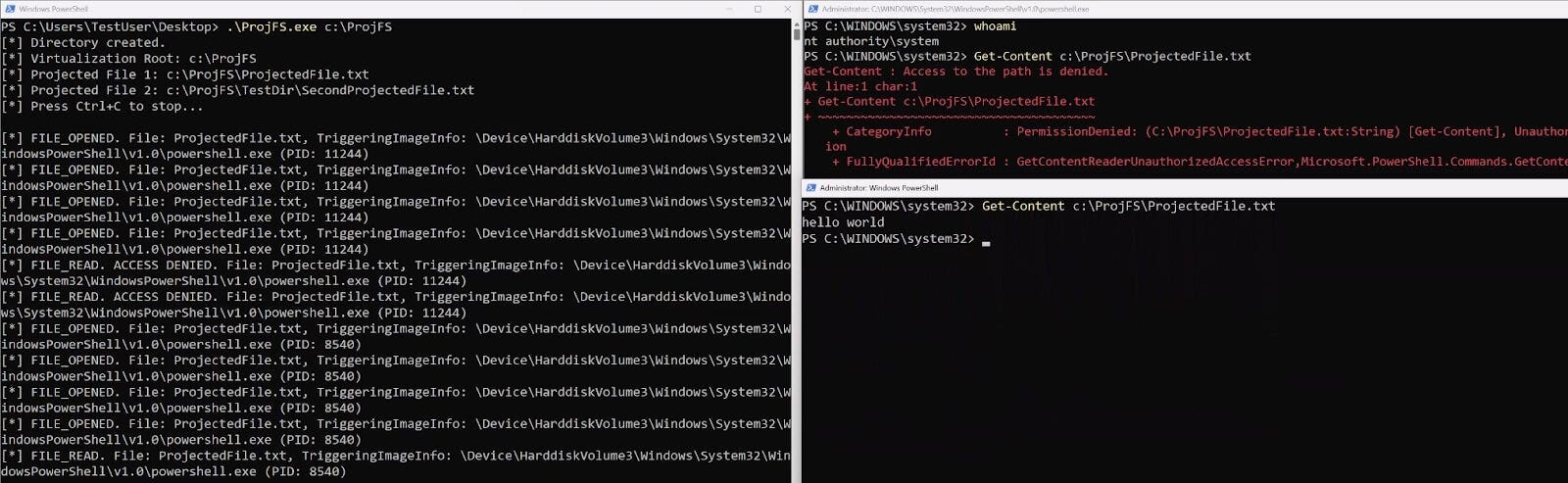

Here’s an example of supplying ERROR_ACCESS_DENIED to one process running as SYSTEM but allowing access to another PowerShell process:

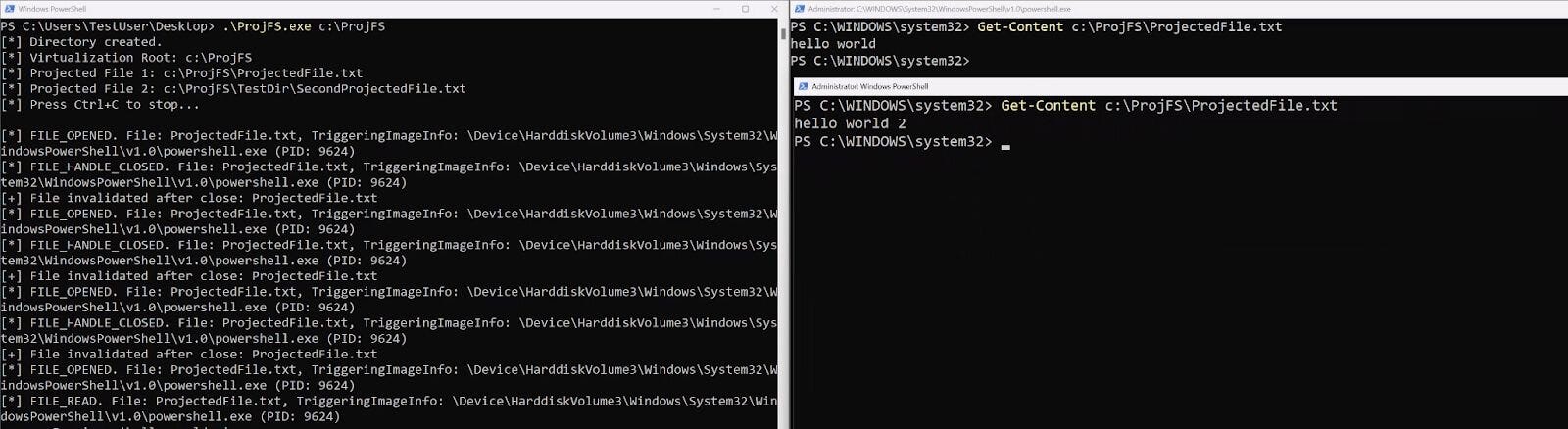

Here’s another example of supplying different contents to the same file to different processes:
This isn’t the natural implementation of the ProjFS. Usually, if a file is successfully read, it’s considered rehydrated and doesn’t go back through the GetFileDataCallback. However, one can track when the file handle is closed by looking at the PRJ_NOTIFICATION_FILE_HANDLE_CLOSED_FILE_MODIFIED or PRJ_NOTIFICATION_FILE_HANDLE_CLOSED_NO_MODIFICATION notifications and delete the file via PrjDeleteFile. This will force another “rehydration.”
**Note: **This only works if the previous application closes its handle on the file prior to another attempting to open it.
Defensive
The ProjFS has one really great use case for defensive work-Canaries. The data you get back from the ProjFS is tremendous and almost a one-for-one of what you’d get within a minifilter. Sure, you won’t have as much “control” over every File I/O operation, but you get the important stuff from within the PRJ_CALLBACK_DATA structure:
typedef struct PRJ_CALLBACK_DATA
{
UINT32 Size;
PRJ_CALLBACK_DATA_FLAGS Flags;
PRJ_NAMESPACE_VIRTUALIZATION_CONTEXT NamespaceVirtualizationContext;
INT32 CommandId;
GUID FileId;
GUID DataStreamId;
PCWSTR FilePathName;
PRJ_PLACEHOLDER_VERSION_INFO* VersionInfo;
UINT32 TriggeringProcessId;
PCWSTR TriggeringProcessImageFileName;
void* InstanceContext;
} PRJ_CALLBACK_DATA;This seems like a no-brainer and very efficient way to track files, who’s accessing those files, and who’s trying to modify them. All of this really helps in attacks like ransomware. This is especially useful since Microsoft is talking about moving away from the kernel in the Windows Resiliency Initiative. Think of this combination: ProjFS for canaries while also leveraging the Microsoft-Windows-Kernel-File ETW provider. This would make for a lot of great file visibility without the need for a minifilter at all (again, granted you wouldn’t have any blocking capability or at least very limited through the ProjFS provider).
Conclusion
I want to thank Casey Smith for reminding me of this “filesystem” because digging into ProjFS was a super fun project to dive into. I encourage anyone who hasn’t yet to interact with this technology a little bit. I think it has a lot of value (more so for the defensive side, but some cool things you can do for offensive too if you really want to). I hope you enjoyed this walk-through, and if there are any questions, as always, please reach out!
Resources
- “Projected File System” by Pavel Yosifovich
- “RegFS sample provider” by Microsoft
- “Investigating Filter Communication Ports” by Yarden Shafir
